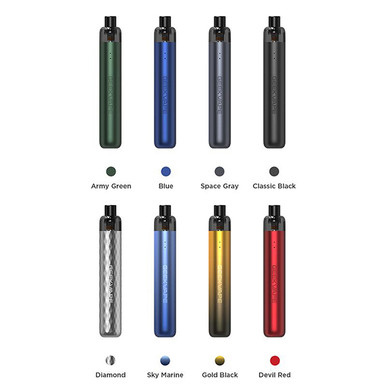

Geekvape Wenax S-C Pod Kit

The Geekvape Wenax S‑C Pod Kit is a pocket‑sized pod system engineered for mouth‑to‑lung (MTL) vaping. It incorporates a 2 mL e‑liquid cartridge and a mesh coil that delivers smooth, consistent flavor. The compact design, combined with reliable battery life and adjustable output, makes it suitable for users who prefer a discreet yet powerful device.

Battery & Power Management

The device is powered by an integrated 1100 mAh lithium‑ion battery that provides ample runtime between charges. Charging is performed through a USB Type‑C port, which supports 5 V/1 A input and allows for quick recharging compared to older micro‑USB connections. The nominal operating voltage of the unit is set at 3.2 V ± 0.1 V; when the battery voltage falls below this threshold a low‑voltage warning activates, preventing deep discharge that could damage the cell or reduce performance. During periods of inactivity the device draws less than 15 µA, keeping standby consumption minimal and extending overall battery life.

Coil & Resistance Configuration

The Wenax S‑C uses a mesh coil, which offers a larger surface area for heat transfer compared to traditional wire coils. This design promotes even heating, reduces hotspots, and enhances flavor stability during use. The base resistance of the coil is fixed at 0.6 Ω, allowing a maximum power output of 16 W. Auto activation automatically selects between two resistance settings: 0.6 Ω (14/15/16 W) for stronger vapor and 1.2 Ω (9/10/11 W) for a lighter, more controlled experience. Users can also manually trigger the firing button to lock the device into either the 0.6 Ω at 16 W or the 1.2 Ω at 11 W mode, giving precise control over wattage and airflow.

Pod Cartridge & E‑liquid Capacity

The pod system houses a sealed 2 mL e‑liquid reservoir that is easy to refill without leaking. The small capacity encourages frequent refills, which can help maintain consistent flavor as the liquid level drops. Because the cartridge is designed for MTL use, it delivers a tighter draw and higher resistance, ensuring that vapor production remains stable even with lower wattage settings.

Size & Ergonomics

The overall dimensions of the Wenax S‑C are 18.85 × 112 mm, making it lightweight and highly portable. The slim profile allows for comfortable one‑hand operation, while the ergonomic shape fits naturally in most hand sizes. Despite its small size, the device includes a robust internal PCBA that houses safety features such as temperature alarms and voltage monitoring.

Temperature & Safety Features

The unit is equipped with a temperature alarm set at 80 °C. This sensor monitors coil temperature during operation; if the temperature exceeds the threshold, the device automatically shuts down to prevent overheating. The operating temperature range of the device spans from -10 °C to 45 °C, ensuring reliable performance in a variety of environmental conditions. Additionally, the longest continuous vaping time is limited to 10 s, which helps manage heat buildup and protects both the coil and battery during extended sessions.

Charging & Power Management

The inclusion of a USB Type‑C charging port not only speeds up recharging but also simplifies cable management, as the same cable can be used for power delivery and data transfer if needed. The device’s internal circuitry monitors battery voltage continuously; when it drops below 3.2 V ± 0.1 V, a low‑voltage warning is triggered to safeguard the battery from deep discharge. This feature, combined with the low standby current of less than 15 µA, ensures that the device remains ready for use while conserving power when not actively vaping.

What's in the box?

• Geekvape Wenax S‑C Pod Kit (2 mL cartridge)
• USB Type‑C charging cable
• User manual
